Basic Active directory configuration example

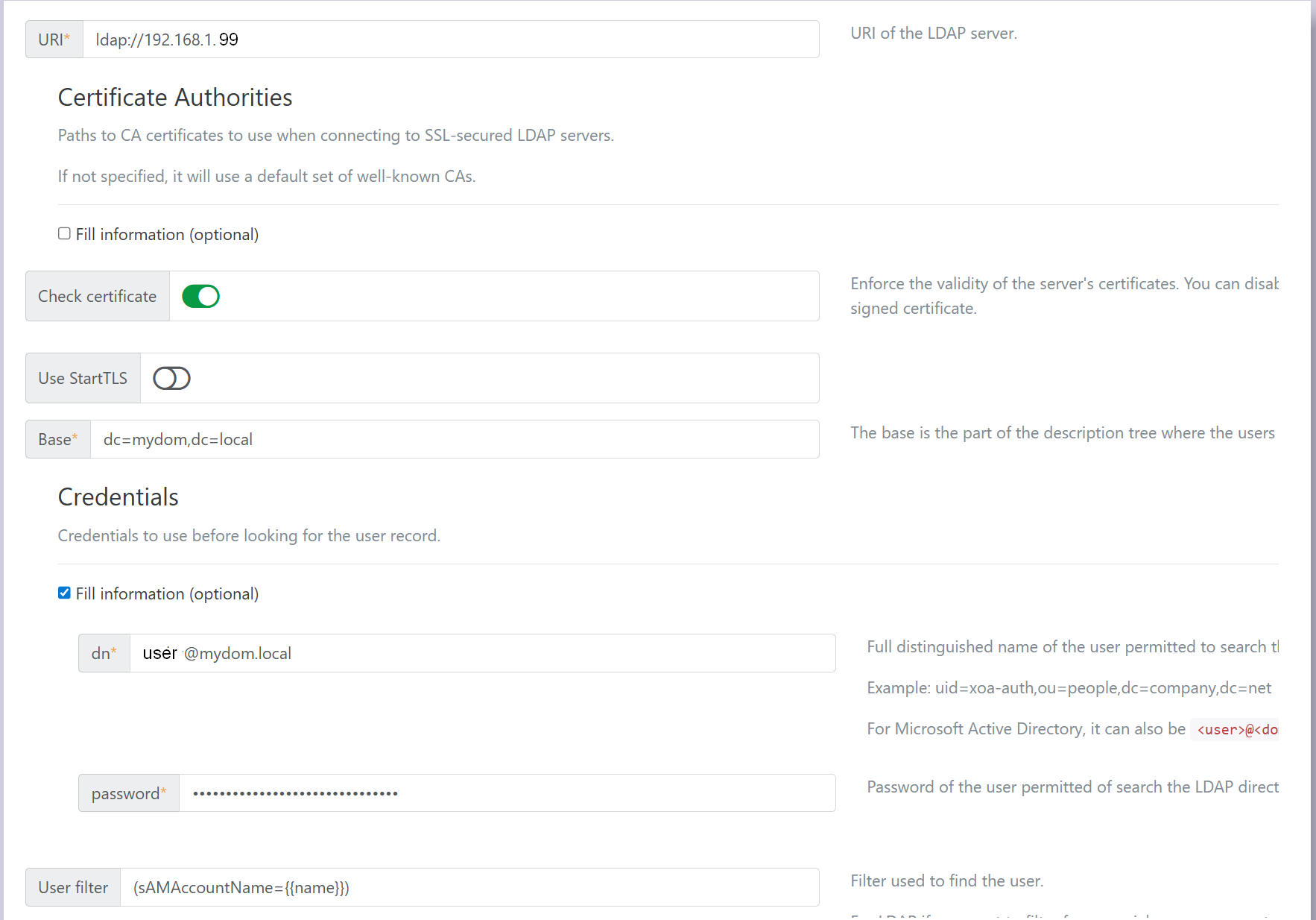

    URL: should be filled with the AD url.
    Certificate Authorities: you can fill this field with a custom authority if needed for your certificate.
    Check certificate: can be checked for AD and Ads.
    Use StartTLS: Should be checked if using Ads.
    Base: Should be filled with your domain FQDN. Example: dc=mydom,dc=local
    DN: Should be fill with a username able to connect and browse your AD. Example: yachy@mydom.local
    Password: should be filled with: the User password.
    User filter: Should be filled with this sAMAcountName syntax: (sAMAccountName={{name}})
    ID attribute: should be filled with: sAMAccountName

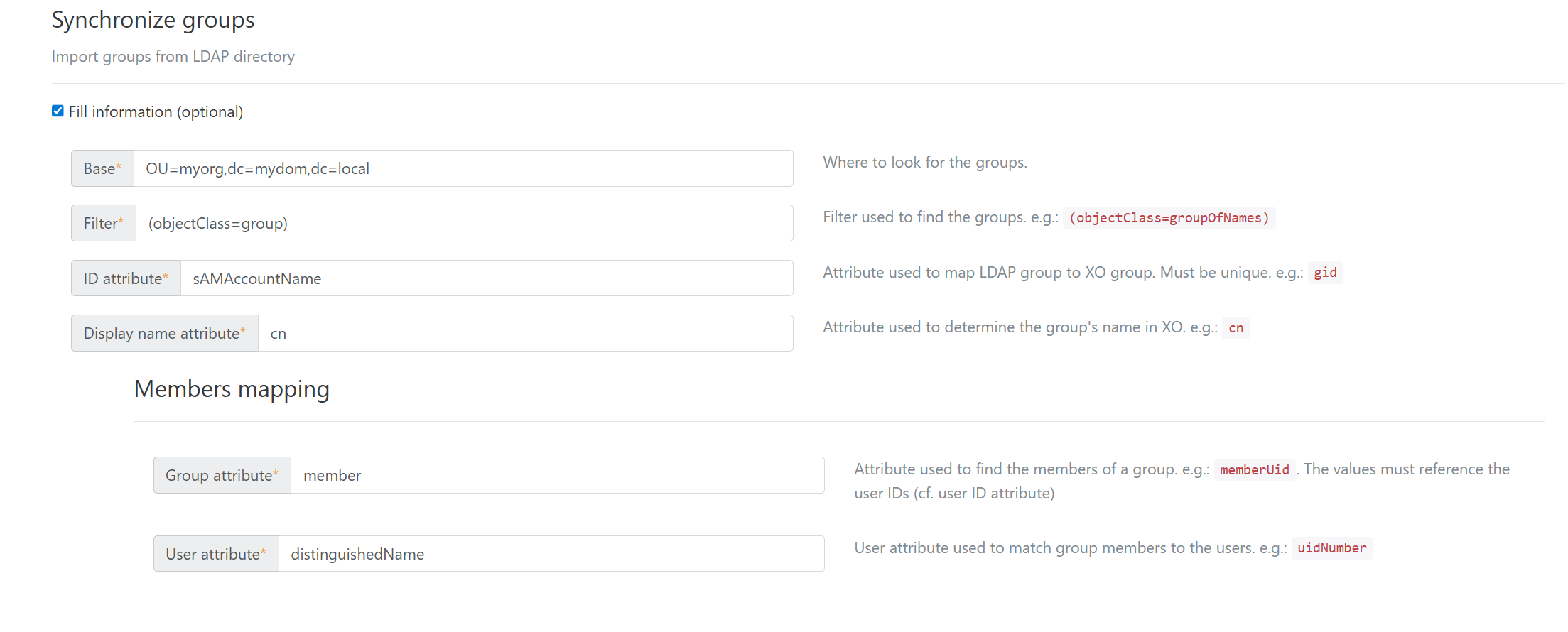

    Base: Should be filled with the OU where to find groups. Example: OU=Mygroups,OU=myorg,dc=mydom,dc=local
    Filter: Should be filled with the expression to filter your groups the most basic filter can be:
    (objectClass=group) but you can do way more advanced LDAP expression for filtering.
    ID attribute: Should be filled with: sAMAccountName
    Display name attribute: Should be filled with: CN
    Group attribute: should be filled with: Member
    User attribute: should be filled with: distinguishedName
